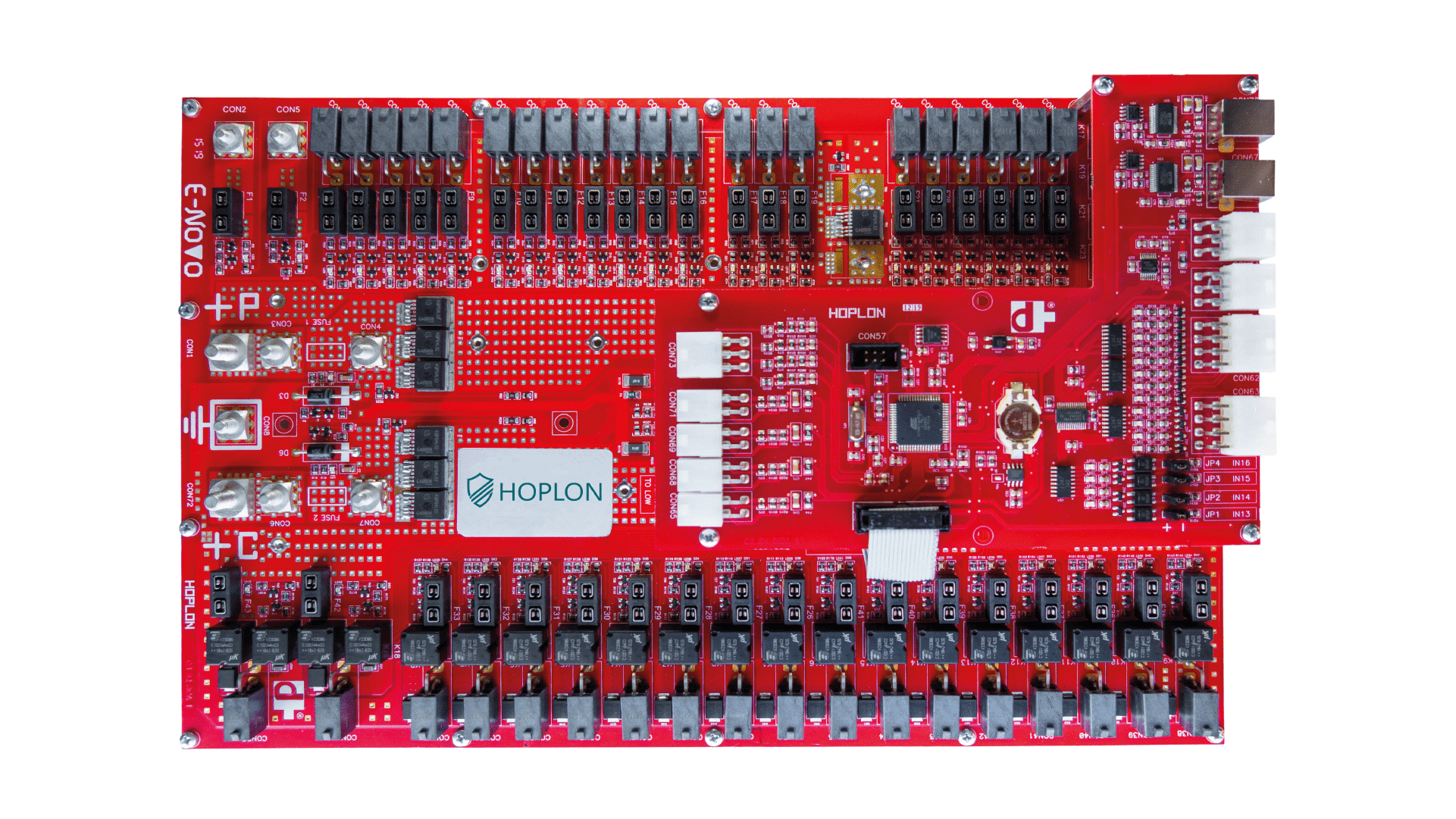

Project Description


Power supply 10…15V DC by two independent circuits
One with permanent supply for critical devices (ex.: medical)
Circuit supplies 23 outputs:
14 outputs with 15A RMS/30A peak
2 outputs with 25A RMS/50A peak
6 outputs with 15A RMS/30A peak active only after ignition key

All outputs are protected by fuse
One for the controlled power outputs
Circuit supplies 28:
4 outputs combined by 2 with reverse polarity capacity normally used for motor direction control
All 4 outputs with capacity to source up to 15A Rms/30A peak with a fuse and transient voltage suppressor (TVs)
16 outputs for general purpose with:
Capacity to source up to 15A Rms/30A peak.
Current limiting protection by fuse
Transient voltage suppressor

4 solid state relay outputs for PWM control protected by TVs and PTC fuse limited to 8A.

4 outputs for signal bypass or power up to 15A Rms/30A peak
4 Interfaces for HMI devices:
2 USB 2.0
2 RS232 for auxiliary keypads

16 digital inputs:
8 active low (GND)
4 active high (+12v)
4 with polarity selectable

4 analogue inputs for level measuring (ex.: battery level, current consuming)
4 interfaces for temperature sensors

Project Details

More Information

Dimensions: 340x230mm
